1 piece 200x75mm Grooved Rubber Contact Wheel Dynamically Balanced Belt Sander Backstand Idler

1 piece 200x75mm Grooved Rubber Contact Wheel Dynamically Balanced Belt Sander Backstand Idler

Regular price $68.00 USD
Regular price $0.00 USD Sale price $68.00 USD
Sale Sold out
Shipping calculated at checkout.

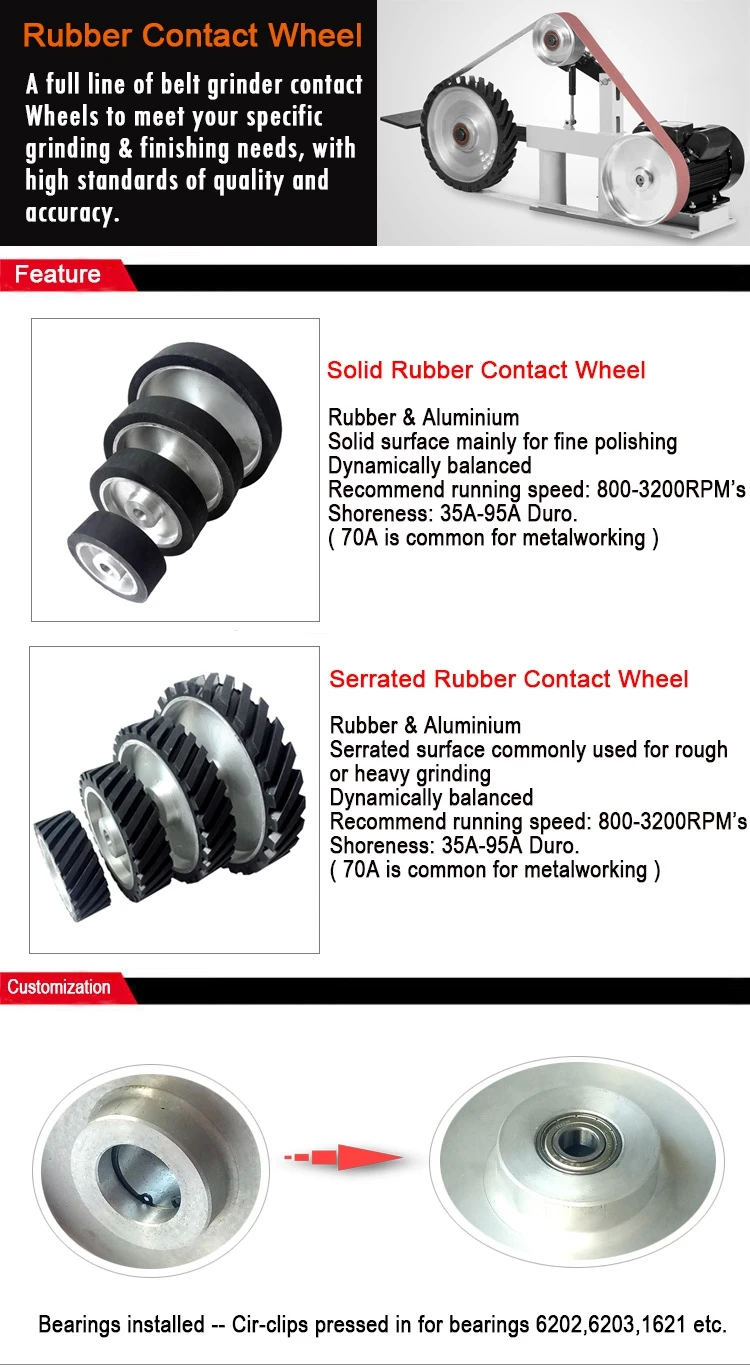

200x75mm Grooved Rubber Contact Wheel

Options for Inner Hole:
    1. ID 25mm/28mm/32mm ---  25mm/28mm/32mm through hole used on engine shaft or grinder axle.
    2. ID 24mm/28mm keyway 8x3mm---  24mm/28mm through hole with keyway width 8 x depth 3mm used on engine shaft or grinder axle.
    3. For 6202 bearings ----  35mm inner hole with circlips  ( Bearings not included )
    4. 6202-1/2 installed 12.7mm ----  Wheel installed by bearings 6202 with 12.7mm inner hole ( bearings OD35*ID12.7*TH11mm )
    5. 6202-15 installed 15mm----  Wheel installed by bearings 6202 with 15mm inner hole ( bearings OD35*ID15*TH11mm )
    6. 6202-5/8 installed 15.875mm----  Wheel installed by bearings 6202 with 15.875mm inner hole ( bearings OD35*ID15.875*TH11mm )
    7. 6201 installed 12mm ----  Wheel installed by bearings 6201 with 12mm inner hole ( bearings OD32*ID12*TH10mm )
    8. 6004 installed 20mm ----  Wheel installed by bearings 6004 with 20mm inner hole ( bearings OD42*ID20*TH12mm )
    9. 6204 installed 20mm ---- Wheel installed by bearings 6204 with 20mm inner hole ( bearings OD47*ID20*TH14mm )

    Product Mix: Rubber, Aluminum wheel core

    Size:  200 (OD)* 75(TH)

    Hardness: Medium 70A , Hard 90A ( Hardness 35A-95A can be customized )


    1. Made by Strong hard wearing rubber, working with sanding belt #36-1000 for coarse grinding and fine polishing
    2. Glued excellent, with long service life
    3. Low noise, without vibration, safe operation environment
        1. Rams Bralin Contact Wheel offers a full line of Contact Wheels to meet your specific grinding and finishing needs. We fabricate our Contact Wheels to high standards of quality and accuracy. Our rubber Elastomers are designed to provide long life and dependable service!
        2. New Contact Wheels are commonly available from 2" to 14" in diameter. Face widths are from 1" to 6", plain or serrated. Durometers range from 35A, for polishing and light sanding, to 90A, for more aggressive metal removal. All of our Contact Wheels are balanced before leaving our factory. We can also custom design and fabricate Contact Wheels to your specifications, tailored to work with your unique application.
        rubber wheel
