1 piece 350*50mm Serrated/Solid Rubber Contact Wheel Belt Grinder Wheel Dynamically Balanced

1 piece 350*50mm Serrated/Solid Rubber Contact Wheel Belt Grinder Wheel Dynamically Balanced

Regular price $129.00 USD
Regular price $0.00 USD Sale price $129.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

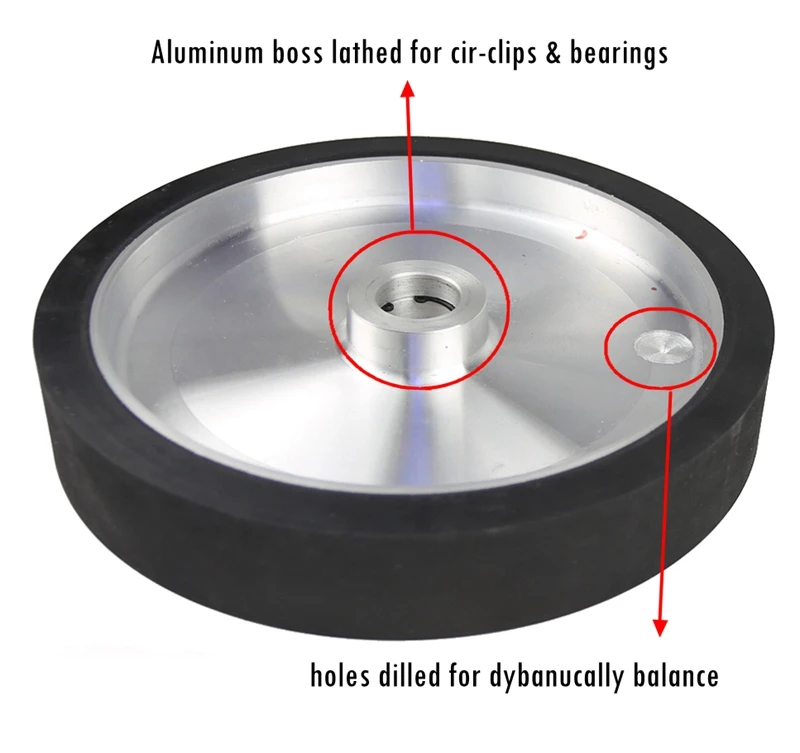

350*50mm Grooved/Solid Rubber Contact Wheel

  • Options for Inner Hole:
  1. ID 25mm / ID 32mm --- 25mm / 32mm through hole used on engine shaft or grinder axle, cannot install the bearings
  2. For 6202 bearings --- 35mm inner hole with cir-clips for 6202 bearings ( Bearings not included )
  3. For 6005 bearings --- 47mm inner hole with cir-clips for 6005 bearings ( Bearings 6005-25mm not included )
  4. For 6203 bearings --- 40mm inner hole with cir-clips for 6203 bearings ( Bearings 6203-17mm not included )
  5. 6202 installed 12.7mm --- Wheel installed by bearings 6202 with 1/2" inner hole ( Bearings 6202-- OD35*ID12.7*TH11mm )
  6. 6202 installed 15mm --- Wheel installed by bearings 6202 with 15mm inner hole ( Bearings 6202-- OD35*ID15*TH11mm )
  7. 6202 installed 15.875mm --- Wheel installed by bearings 6202 with 5/8" inner hole ( Bearings 6202-- OD35*ID15.875*TH11mm )
  8. 6201 installed 12mm --- Bearings 6201 installed ( 6201-Dia.32mm*TH 10mm *Hole 12mm )
  9. 6204 installed 20mm --- Bearings 6204 installed ( 6204-Dia.47mm*TH 14mm *Hole 20mm )





rubber contact wheel 300

  • Product Mix:   Rubber, Aluminum wheel core
  • Size:  350mm (OD)* 50mm (H)
  • Hardness: Medium 65-70A  ( Hardness 35A-95A can be customized )
  • Feature:
  1. Made by Strong hard wearing rubber, working with sanding belt #36-1000 for coarse grinding and fine polishing
  2. Glued excellent, with long service life
  3. Low noise, without vibration, safe operation environment
      • Application:
      1. Rams Bralin Contact Wheel offers a full line of Contact Wheels to meet your specific grinding and finishing needs. We fabricate our Contact Wheels to high standards of quality and accuracy. Our rubber Elastomers are designed to provide long life and dependable service!
      2. New Contact Wheels are commonly available from 2" to 14" in diameter. Face widths are from 1" to 6", plain or serrated. Durometers range from 35A, for polishing and light sanding, to 90A, for more aggressive metal removal. All of our Contact Wheels are balanced before leaving our factory. We can also custom design and fabricate Contact Wheels to your specifications, tailored to work with your unique application.

        rubber wheel







        workshop
